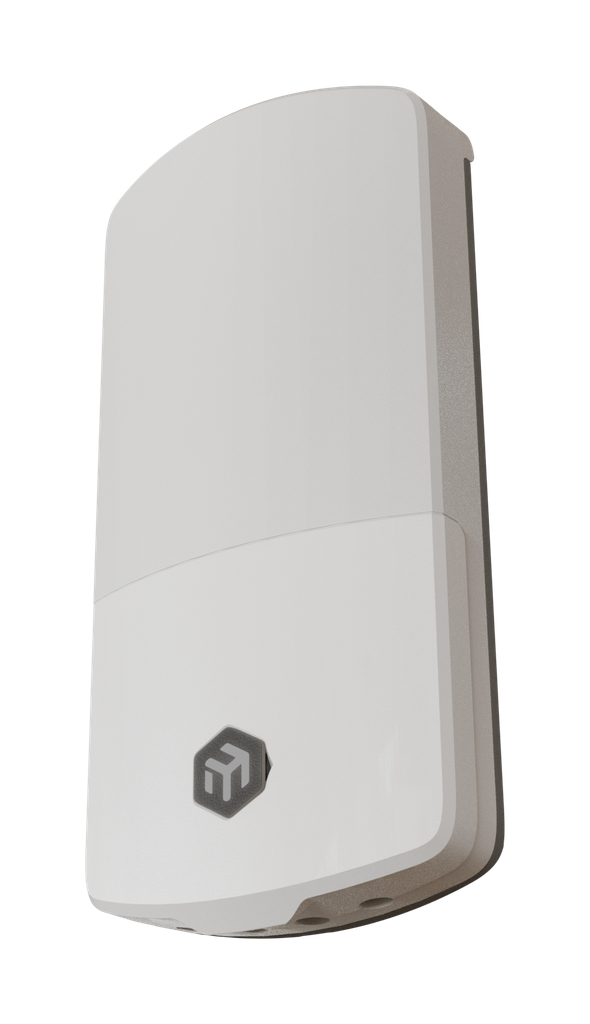

MikroTik wAPGR-5HaxD2HaxD&R11e-LTE7 wAP ax LTE7 Kit Wi-Fi 6 CAT7 LTE Outdoor Router
MikroTik wAPGR-5HaxD2HaxD&R11e-LTE7 wAP ax LTE7 outdoor access point with dual-band Wi-Fi 6, CAT7 LTE, two Gigabit Ethernet ports, PoE and IP66 protection.
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
MikroTik wAP ax LTE7 Kit Outdoor Wi-Fi 6 and CAT7 LTE Router
Product code: wAPGR-5HaxD2HaxD&R11e-LTE7
The MikroTik wAP ax LTE7 kit combines dual-band Wi-Fi 6, CAT7 LTE and two Gigabit Ethernet ports in a discreet IP66 weatherproof enclosure for reliable connectivity in challenging locations.
CAT7 LTE
Up to 300 Mbit/s download and 100 Mbit/s upload with carrier aggregation and expanded Band 28 and Band 32 support.
Dual-band Wi-Fi 6
2×2 MIMO radios deliver up to 574 Mbit/s at 2.4 GHz and 1200 Mbit/s at 5 GHz.
Flexible connectivity

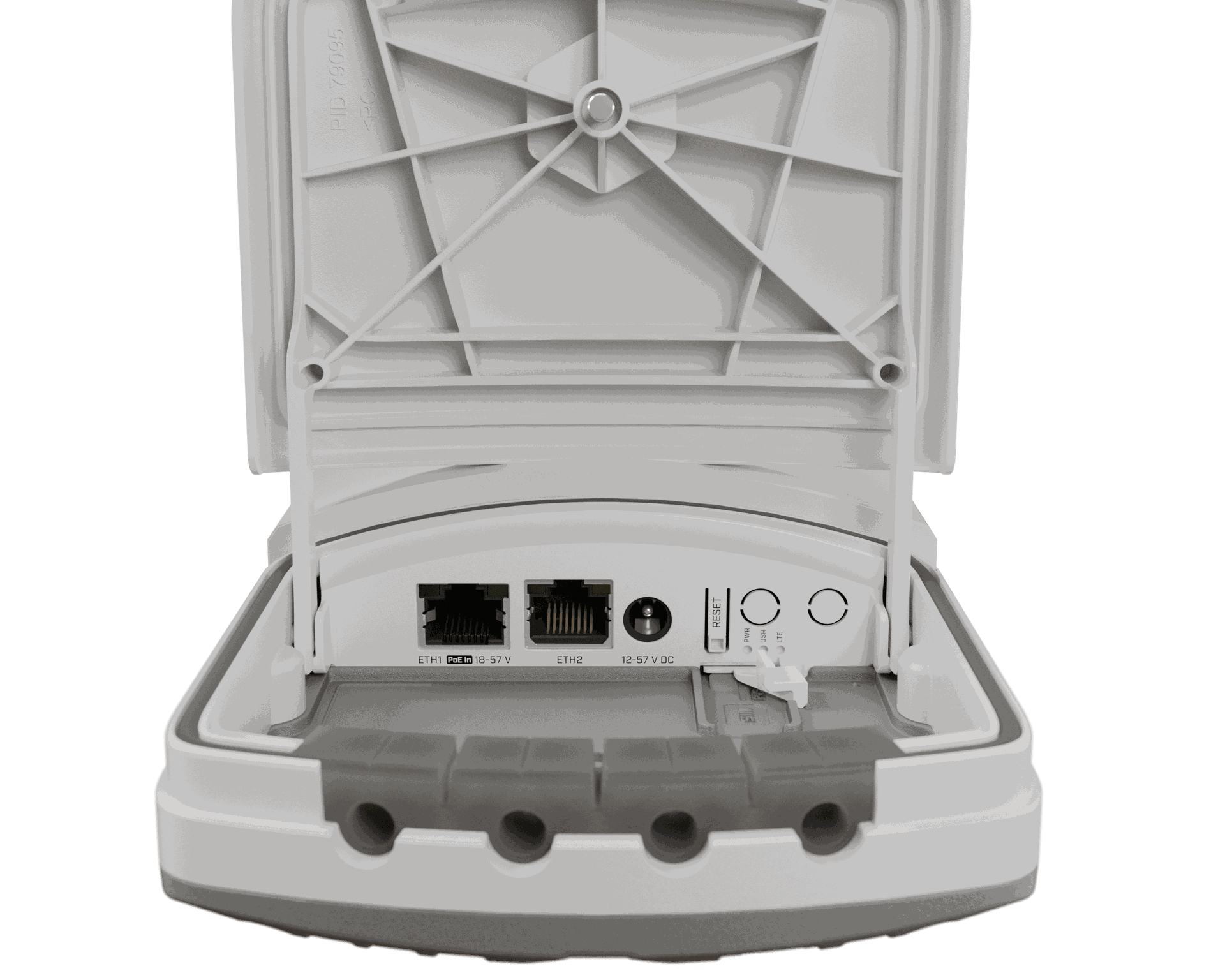

Two Gigabit Ethernet ports with 802.3af/at PoE input plus a wide-range DC jack.
IP66 enclosure
A weatherproof, discreet design with concealed anti-vandal fastening for exposed installations.
Ideal applications
- Rural homes, holiday properties and remote offices.
- Outdoor connectivity for farms, service stations and transport stops.
- Public spaces requiring a discreet, secure installation.
- LTE failover and primary WAN connectivity.
- RouterOS-managed Wi-Fi deployments using the latest CAPsMAN.
Key specifications
- Product code: wAPGR-5HaxD2HaxD&R11e-LTE7
- Architecture: ARM 32-bit
- CPU: IPQ-5010, 2 cores, 800 MHz
- Memory: 256 MB RAM
- Storage: 128 MB NAND
- Operating system: RouterOS v7, licence level 4
- Ethernet: 2 × 10/100/1000 ports
- SIM: 1 × Micro SIM
- LTE: Category 7, 300 Mbit/s down and 100 Mbit/s up
- LTE MIMO: 2×2 downlink, 1×1 uplink
- LTE FDD bands: 1, 3, 5, 7, 8, 20, 28 and 32
- LTE TDD bands: 38, 40 and 41
- 2.4 GHz Wi-Fi: 802.11b/g/n/ax, 2×2, up to 574 Mbit/s, 6.9 dBi
- 5 GHz Wi-Fi: 802.11a/n/ac/ax, 2×2, up to 1200 Mbit/s, 7 dBi
- Power: 12–57 V DC or 18–57 V PoE input, 802.3af/at
- Maximum power consumption: 13 W
- Cooling: Passive
- Protection: IP66
- Operating temperature: −30 to 70°C
- Certifications: CE, EAC and RoHS
Included parts
24 V 0.8 A power adaptor, Gigabit PoE injector, hose clamp, K-95 mounting kit and plastic tie strap.
Why choose the wAP ax LTE7 kit?
It brings faster LTE uploads, modern Wi-Fi 6, flexible power and RouterOS v7 management to the proven wAP outdoor form factor without attracting unnecessary attention.
Download the official MikroTik brochure
Frequently asked questions
Does the wAP ax LTE7 support Australian LTE bands?
It supports a broad set of FDD and TDD bands including FDD Band 28 at 700 MHz and TDD Band 40 at 2300 MHz.
Can it be powered by PoE?
Yes. Ethernet port 1 accepts 802.3af/at PoE input at 18–57 V. A 12–57 V DC input is also available.
Is it suitable for outdoor installation?
Yes. The enclosure is rated IP66 and tested for operation from −30 to 70°C.
What Wi-Fi standard does it use?
It uses dual-band Wi-Fi 6 with two chains on both 2.4 GHz and 5 GHz.
Which management platform is included?
RouterOS v7 with licence level 4 is preinstalled, with support for the latest CAPsMAN.
